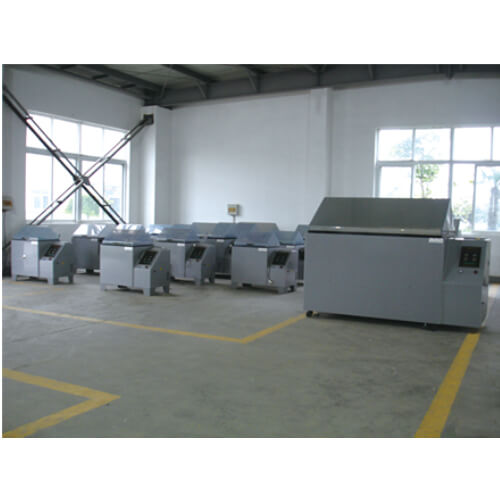

Salt Spray Corrosion Test Chamber is adapted to the treatment of various material……
Description
Salt Spray Corrosion Test Chamber is adapted to the treatment of various material,including paint,electroplating,organic and inorganic coating,anode processing,anti-rust oil and so on,after these anti-corrosive treatment to the test corrosion resistance of their products.Salt Spray Corrosion Test Chamber Capacities range from 100 liters to 1000 liters.
Corresponding standard
- IEC60068-2-11
- ASTM-B117
- ISO4628-3
- JIS K5400
- JIS-Z2371
- JIS-G3141
- GJB 150.1
- GB/T 2423.17
Detailed pictures
![control panel Control panel](https://www.jyclimatechamber.com/wp-content/uploads/2017/04/control-panel-2.png)
Control panel
![Spray nozzle Spray nozzle](https://www.jyclimatechamber.com/wp-content/uploads/2017/04/Spray-nozzle.png)
Spray nozzle
- Both inner and outer adopt import PP board material
- Temperature range 35℃ to 55℃
- Spray quantity 1~2 ml / 80cm2
- Spray mode can be continuous or periodic
- Japan import”Fuji”controller
- Temperature sensor PT 100
- Transparent lid to observe the inner test conditions
- Equipped with specimen holder,mist collectors.
- No crystallization of corrosion resistance atomizer tower with quartz spray nozzles
- With Safety protection devices
- Casters for easy moving during installation or relocation
Model | JYYW-150 | JYYW-250 | JYYW-750 |
Capacity | 108L | 270L | 495L |
Internal Size(W*D*H,MM) | 600*450*400 | 900*600*500 | 1100*750*500 |
Outer Size(W*D*H,MM) | 1150*560*1100 | 1400*850*1200 | 1650*950*1300 |
Model | JYYW-010 | JYYW-016 | JYYW-020 |
Capacity | 663L | 816L | 1080L |
Internal Size(W*D*H,MM) | 663L | 816L | 1080L |
Outer Size(W*D*H,MM) | 1300*850*600 | 1600*850*600 | 2000*900*600 |
Temperature Range | +35 °C ~ +55 °C | ||
Temperature Uniformity | ≤2°C | ||
Temperature Fluctuation | ± 0.5°C | ||
Spray Quantity | 1~2 ml / 80cm2 | ||
Spray Mode | Continuous,periodic optional | ||
Test Timing Range | 1~9999(H,M,S) | ||
Spray System | Tower spray nozzle with no crystal nozzle | ||
Controller | Japan import”Fuji”meter | ||
Outer Material | Import PP board which is corrosion resistant,high temperature resistant ,aging resistant and high-intensity | ||
Internal Material | Import PP board which is corrosion resistant,high temperature resistant ,aging resistant and high-intensity | ||
Tank cover material | Import PVC board which is corrosion resistant and high-intensity | ||
Security Devices | Over-temperature,default phase protection,water shortage protection | ||
Supply Voltage | AC220V·50HZ/380V·50HZ |
